VSR-SC12

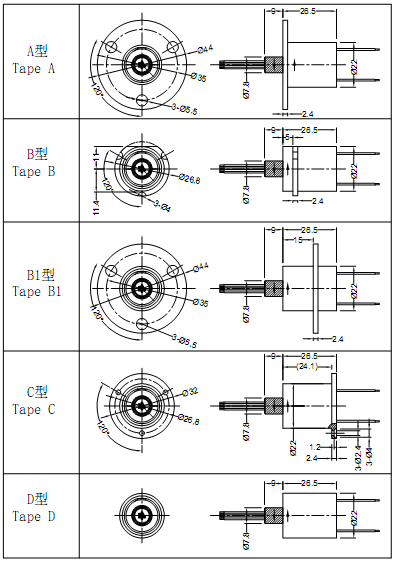

SC slip ring capsule is a standard,off-the-shelf unit that uses gold contacts at the rotary interface.Color-coded lead wires are used on both the stator and rotor to distinguish, with double contacts & double precision roller bearings, it utilizes 90°V-groove rings to provide smoother running, lower torque and lower electrical noise.  Flame-retardant plastic shell,6, 12, and 24 circuit models for Power and /or signal. A.）Outline （Units：mm） B.）Specification Channels 1~12 Ways Voltage 240V AC/DC Current Rating 2A/Ring Speed 300PRM Insulation Resistance 1000M Ω @500VDC Dielectric Strength AC250V@60Hz, 60S Electrical Noise 60 milliohms MAX @ 5~10 rpm,50milliamps,6V DC Lead Size/Type AWG28 Sliver plated coppe,Type ET Teflon Lead Lengths 250mm Operate Temp -20℃～+80℃ Storage Temp -30℃～+90℃ C.）Wire Map D.）Feature ● Compact miniature design, small size, fit for harsh space; ● Double precision roller bearings for lower torque & long life; ● Signal and power can be combined to deliver in the same slip ring; ● More installation flange for option. E.）Application ●  CCTV monitoring system; ●  Medical equipment; ●  Robots; ●  Laboratory equipment. D.) Option ● Higher speed; ● Metal shell; ● Available connector and Heat-shrink tube; ● Length of lead wires for option. G:）Other Flange （including but not limited to below types.)
