HS-FA2X1/2-S24-SF

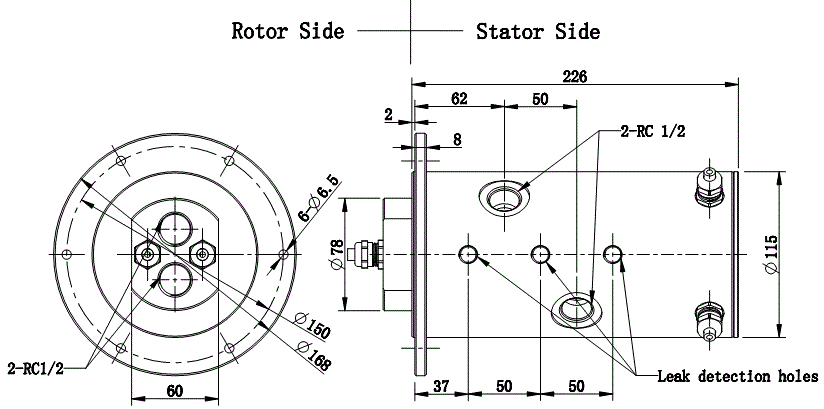

Description： HS-FA2X1/2-S24-SF hybrid slip ring is designed to setup at the end of shaft or side of the machine, fit to pass fluid +signal or low current power. It is set in the body of rotary joint, the wire of rotor will lead out from the center. Stator side has flanges for setup. Type: Drawing： Feature: 1)    High quality bearing on both sides of shaft for smoothly operating; 2)     No need to maintain; 3)     High quality sealing materials for long life circle; 4)     Special shaft provides an excellent wear resistance; 5)     Al, Bass, stainless steel body for option; 6)     Specially designed leak detection holes; 7)     Stator side has flanges for setup. Technical spec: Speed 200Rpm Operate temperature -30～90℃ protect degree IP65 Housing Al alloy Part A:(Electronic Slip Rings) Channels 12 rings（for signal） Operation Voltage 0~240VAC/DC Current 2A/Ring Contact material Precious Metal Electric Noise Max.40m Ω Dielectric strength 500VAC@50Hz,60s Insulation resistance 500MΩ @600VDC Part B:(Rotary Joint) Channels 2 Ways Pressure 1.6Mpa Max Media compressed air/ vacuum Application ● Rotary tables, test equipments; ● Robots,processing equipments and rotary sensors; ● Liquid filling machine; ● Medical equipments. Option： ● Water,compressed air, hydraulic fluid can be carried; ● Speed up to 2500 RPM; ● Pressure up to 25Mpa; ● Operating Temp:-30-200℃; ● Single channel,multi channels for option; ● Divided design- parts of slip ring can be divided，easy to assembly; ● Flanges for setup.
