DT-65X3P360

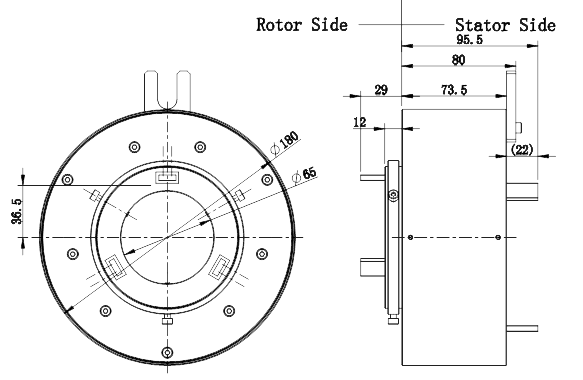

Description DTS-65X3P360 slip rings is designed for passing 3 ways 360A current in one body,of which the current was lead out by copper strip from stator side and rotor side. The shaft of slip rings is made by heat-resisting plastic. Copper alloy material leads a reliable contact. This kind of slip ring is designed for 60RPM, based on good thermal design & heat-resisting materials. Type Drawing Feature 1) One-piece shaft design; 2) Copper alloy contact materials; 3) Separated design; 4) High operating speed; 5) Fit for use in the working condition of high temperature. Technical spec Channels 3 rings（for signal） Operation Voltage 0~380VAC/DC Current 360A/Ring Operate Speed 60RPM Contact material Precious Metal Operate temperature -30～240℃ Electric noise Max.40m Ω Dielectric strength 500VAC@50Hz,60s Insulation resistance 500MΩ @600VDC Application ● Rotary tables, test equipment; ● Plating line; ● High-power system; ● Cable reels. Option ●Higher voltage and current capacity; ●Higher speed; ●wider range of temperature; ●Higher protection class; ●style of exits for lead wires; ●Flange for installation.
