Category: Plug Straightly Slip Ring（H）
| Voltage | 240V AC/DC |
|---|---|
| Current Rating | 2,7,10,20A/Ring |
| Speed | 400PRM |
| Insulation Resistance | 1000MΩ@500VDC |
| Dielectric Strength | AC 600V@60Hz, 60S |
| Electrical Noise | 10 milliohms MAX @5rpm,50milliamps,6V DC |
| Contact Material | Precious metal |
| Operate Temp | -20℃～+80℃ |
| Storage Temp | -30℃～+90℃ |

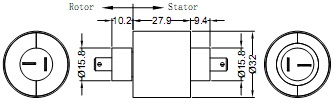

The H series slip rings are compact, cost effective, mercury free, designed for industrial manufacturing.Standard H2 has two rings, each is able to carry 7 amps. H series slip rings overcome mercury slip ring's disadvantages of use on environment-demanding, and not environmental protection. Advanced technology and reliable structure, maximum utilization of contact materials realize the highest performance but low cost . They are best applicable in the food and packaging industries. Standard terminals fit to quickly install. you can customize for2A,14A,20A. A.)Outlin e B.)Specification Voltage 240V AC/DC Current Rating 2,7,10,20A/Ring Speed 400PRM Insulation Resistance 1000MΩ@500VDC Dielectric Strength AC 600V@60Hz, 60S Electrical Noise 10 milliohms MAX @5rpm,50milliamps,6V DC Contact Material Precious metal Operate Temp -20℃～+80℃ Storage Temp -30℃～+90℃ Current specifications Type Rings Current (A) Size of main body Size of Terminals 2 7 14 20 VSR-H2-1 2 2 - - - Φ32*27.9 W2.8*H0.8 VSR-H2-2 2 - 2 - - W6.35*H0.8 VSR-H2-3 2 - - 2 - W6.35*H0.8 VSR-H2-4 2 - - - 2 W6.35*H0.8 C.)Feature ● Mercury free; ● Reliable & rotational connections for power, signal and data transmission; ● Speeds up to 400rpm; ● Fast mounting. D.)Application ● Rotary tables, test equipment,cable reels; ● Robots,processing equipment and rotary sensors; ● Heated roller; ● Medical equipment; ● Food manufacturing machine; ● Packaging equipment. E.)Option ● Wider range of temperature; ● Flange for installation; ● Layout & size of terminals can be customized.
