Category: Plug Straightly Slip Ring（H）
| Voltage | 24 0V AC/DC |
|---|---|
| Current Rating | 2,14 A/Ring |
| Speed | 400PRM |
| Insulation Resistance | 1000MΩ@500VDC |
| Dielectric Strength | AC 600V@60Hz, 60S |
| Electrical Noise | 10 milliohms MAX @5rpm,50milliamps,6V DC |
| Contact Material | Precious metal |
| Operate Temp | -20℃～+80℃ |
| Storage Temp | -30℃～+90℃ |

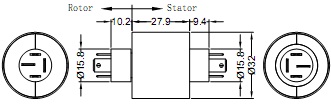

The H series slip rings are compact, cost effective, mercury free, designed for industrial manufacturing. The H4+ has two rings rotating at 14 amps and another two rings rotating at 2 amps. H series slip rings overcome mercury slip ring's disadvantages of use on environment-demanding, and not environmental protection. Advanced technology and reliable structure, maximum utilization of contact materials realize the highest performance but low cost . They are best applicable in the food and packaging industries. Standard terminals fit to quickly install. A.)Outline B.)Specification Voltage 24 0V AC/DC Current Rating 2,14 A/Ring Speed 400PRM Insulation Resistance 1000MΩ@500VDC Dielectric Strength AC 600V@60Hz, 60S Electrical Noise 10 milliohms MAX @5rpm,50milliamps,6V DC Contact Material Precious metal Operate Temp -20℃～+80℃ Storage Temp -30℃～+90℃ C.)Feature ● Mercury free; ● Reliable & rotational connections for power, signal and data transmission; ● Speeds up to 400rpm; ● Fast mounting. D.)Application ● Rotary tables, test equipment,cable reels; ● Robots,processing equipment and rotary sensors; ● Heated rollers; ● Medical equipment; ● Food manufacturing machine; ● Packaging equipment. E.)Option ● Wider range of temperature; ● Flange for installation; ● Layout & size of terminals can be customized.
